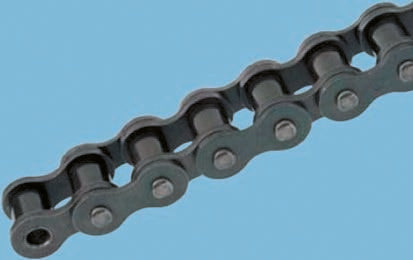

WIPPERMANN40-108A-1 Steel Roller Chain, Simplex Strands, 3m Long , 12.7mm Pitch

Simplex Roller Chains according to DIN 8188-1 (American Type)

Corresponding to ISO 606

Holes punched & shaved by progressive die tools

Fatigue resistant shot peened rollers & plates

All chains are pre-loaded & lubricated ready for use

Supplied in 10 ft length plus a connector

Wippermann Roller Chains

Roller chains DIN 8187, 8188

Roller chains have a wide application range and are therefore frequently used in engine, machine and plant construction, not merely as drive and gear chains, but also as lantern gears, hoisting and conveyor chains as well as in special applications with different attachments for transport and conveyance purposes. With suitable attachment parts, roller chains offer special functionalities and thus a large application variety.

The advantages of roller chains:

Wide application range as drive, conveyor and hoisting chains

A variety of different functions by using attachments on special chains

Robustness to temperature influences and soiling

Positive locking transmission without slip

Cost effectiveness

Excellent application range through different chain sizes and use as simplex and multiplex roller chains

Multiple transmission ratios

Long shaft distances possible, e.g. for conveying systems

Life cycle limits indicated by chain elongation

Problem-free shortening and lengthening of chains

Drive on either side possible

No pre-tensioning required, therefore no static bearing loads

Resistance to fire
