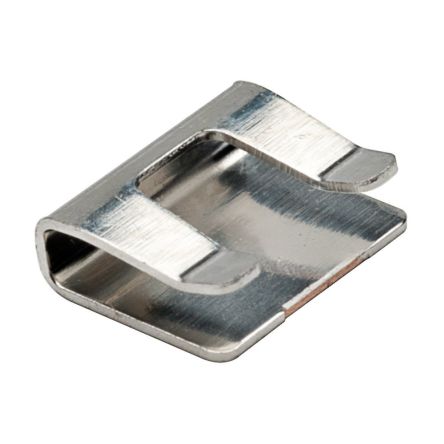

HARWINS8101-46RSilver Tin Plated Copper Alloy Grounding clip, 1mm Max. Bundle

Affixing Method Surface MountCable Clip/Clamp Style Grounding clipMàu SilverVật liệu Tin Plated Copper Alloy
Mã nhà sản xuất
S8101-46R
Thương hiệu
Quy cách đóng gói
Cuộn băng 50 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

EZ Boardware SMT Cable Clips

A range of EZ Boardware SMT Cable Clips for use with insulated cables from 0.9 to 3 mm diameter, can be used with grounding coaxial cables. The EZ Boardware Copper alloy Tin plated SMT Cable Clips can be reflow soldered along with other components and have a low profile and small footprint.

Coax Grounding and Cable Retention:

788-4830 : RG174, RG179, RG316: 3 x 1.0 mm or 2 x 1.5 mm diameter

788-4849 : 2 x 1.5 mm or 1 x 2.0 mm diameter

788-4842 : RG58: 3 x 2.0 mm or 1 x 3.0 mm diameter

The HARWIN Grounding Clip is suitable for use with insulated cables with outer diameters

Ø0.9 to Ø3mm and grounding braided coax cables. It can be soldered at same time as rest of board, reducing additional operation time required for mounting plastic clip types. Its low profile & small footprint saves PCB space.

Material copper alloy

Finish tin

Number of signal contacts 1

Entry style side entry

THÔNG SỐ KỸ THUẬT
Manufacturer HARWIN
Manufacturer Part No. S8101-46R
Cable Clip/Clamp Style Grounding clip
Maximum Bundle Diameter 1mm
Affixing Method Surface Mount
Material Tin Plated Copper Alloy
Colour Silver
Operating Temperature Range -40 / +105 °C
Dimensions [L x W x D] 5.00 x 4.00 x 1.50mm

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.

Compare products

Select 2 or 3 items to compare

Select first item to compare

Select second item to compare

Select third item to compare

Compare
📄 Datasheet HARWIN Silver Tin Plated Copper Alloy Grounding clip, 1mm Max. Bundle (PDF)
