INFINEONTLE8366EV50XUMA11 Low Dropout Voltage, Voltage Regulator 1.8A, 370 kHz 8-Pin, DSO

Maximum Output Current 1.8AMaximum Switching Frequency 370 kHzNumber of Outputs 1Output Type Fixed
Mã nhà sản xuất
TLE8366EV50XUMA1
Thương hiệu
Quy cách đóng gói
Gói 5 cái
Mã kho
2238604
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

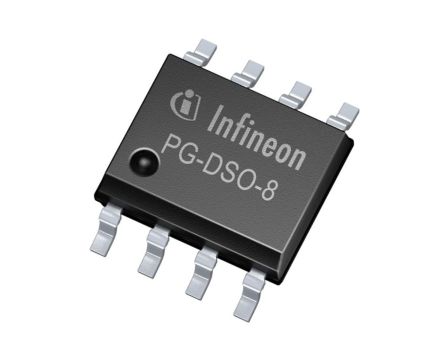

The Infineon TLE8366E series is a PWM step-down DC/DC converter with an integrated 1.8 A power switch, packaged in a small PG-DSO-8 with exposed pad. The wide input voltage range from 4.75 to 45 V makes the TLE8366 suitable for a wide variety of applications. The device is designed to be used under harsh automotive environment. The switching frequency of nominal 370 kHz allows the use of small and cost-effective inductors and capacitors, resulting in a low, predictable output ripple and in minimized consumption of board space.

Synchronization input

Soft-start function

Input under voltage lockout

Green product

RoHS compliant

AEC qualified

THÔNG SỐ KỸ THUẬT
Manufacturer Infineon
Manufacturer Part No. TLE8366EV50XUMA1
Regulator Function Step Down
Regulator Type Low Dropout Voltage
Maximum Output Current 1.8A
Number of Outputs 1
Package Type DSO
Pin Count 8
Output Type Fixed
Maximum Switching Frequency 370 kHz

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.

Compare products

Select 2 or 3 items to compare

Select first item to compare

Select second item to compare

Select third item to compare

Compare
📄 Datasheet INFINEON TLE8366EV50XUMA1 (PDF)
