MICROCHIPEVB-KSZ9897-1EVB-KSZ9897-1

Kit Classification Evaluation BoardTên bo KSZ9897 Switch
Mã nhà sản xuất
EVB-KSZ9897-1
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
1936258
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

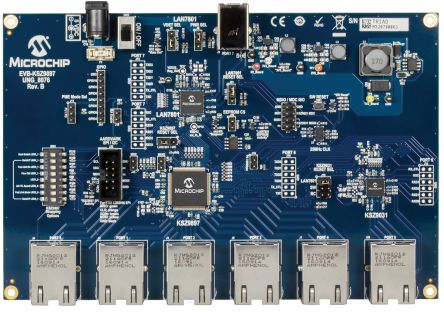

The EVB-KSZ9897 Evaluation Board supports evaluation of the KSZ9897 7-Port Gigabit Ethernet Switch in un-managed mode. The fully featured board has 5 RJ-45 sockets with the two remaining ports being connected to a KSZ9031 PHY and a LAN7801 USB to Ethernet Bridge. The board has connectivity for the MIIM PHY management bus, and also allows for in-band access to registers via the USB Bridge. For configuration of the switch, Microchip has created a Linux based GUI interface allowing access and configuration of many of the KSZ9897 switch features.

Six Ethernet Ports

One USB Port

KSZ9897 Gigabit Ethernet Switch

KSZ0931 Gigabit PHY

LAN7801 USB to Gigabit Ethernet Bridge

THÔNG SỐ KỸ THUẬT
Kit Classification Evaluation Board
Kit Name KSZ9897 Switch
