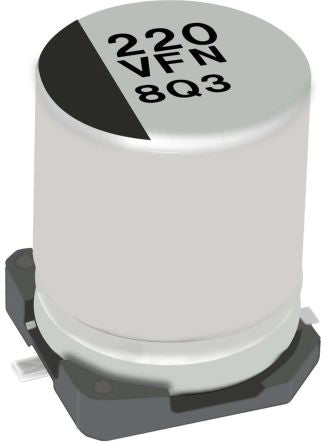

PANASONICEEEFN1H680XP68μF Electrolytic Aluminium Electrolytic Capacitor 50V dc, Surface Mount - EEEFN1H680XP

Điện dung 68µFĐường kính 6.3mmKhoảng cách chân 1.8mmKiểu lắp Surface Mount
Mã nhà sản xuất
EEEFN1H680XP
Thương hiệu
Quy cách đóng gói
Cuộn 900 cái
Mã kho
2043402
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The Panasonic aluminium electrolytic V type FN series capacitor is a vibration proof surface mount capacitor with 68 μF capacitance. This capacitor mostly used in applications like industrial, infrastructure and automotive applications.

life expectancy under temperature up to 105 ? is 2000 hours

AEC-Q200 compliant

THÔNG SỐ KỸ THUẬT
Manufacturer Panasonic
Manufacturer Part No. EEEFN1H680XP
Capacitance 68µF
Voltage 50V dc
Mounting Type Surface Mount
Technology Aluminium Electrolytic
Dimensions 6.3 x 7.7mm
Length 7.7mm
Minimum Operating Temperature -55°C
Diameter 6.3mm
Maximum Operating Temperature +105°C
Lead Pitch 1.8mm
Equivalent Series Resistance 680mΩ
Automotive Standard AEC-Q200
Polarised Polar
Tolerance ±20%
Series FN-V
Ripple Current 195mA

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
